H120 FAST – H4b – W5

SINGLE LINE BARRIER FOR CENTRAL RESERVE AND SIDE EDGE

Concrete road safety barrier 1.20 m high, H4b containment level. Free standing on asphalt.
FAST connection system allows quick installation, easy removable and replacement in case of impact.

Download BIM model

Download

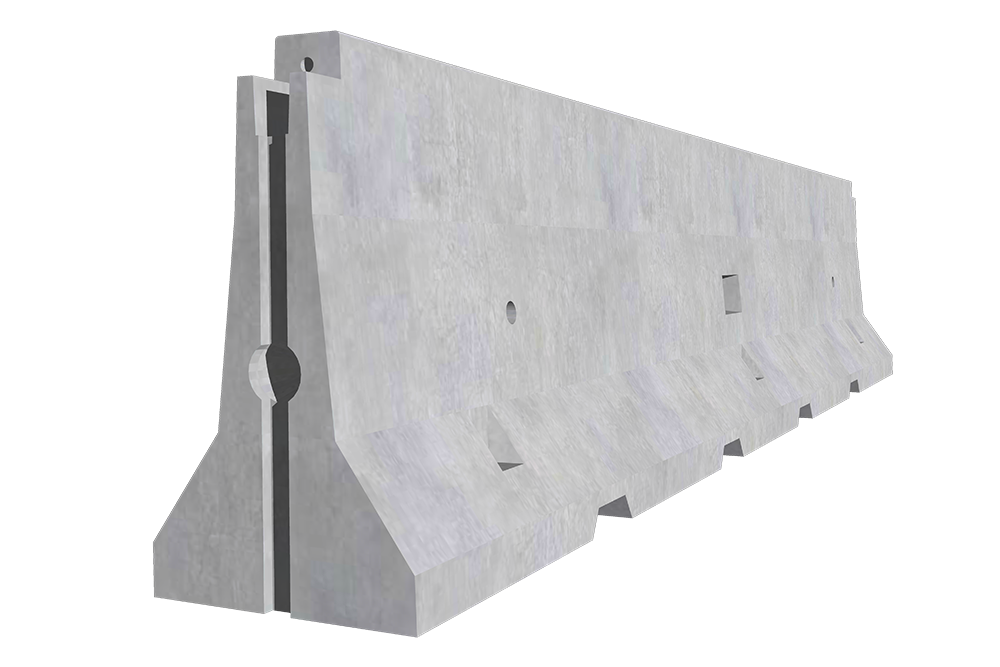

H120 FAST - H4b - W5
H120 FAST - H4b - W5 - Image 2
H120 FAST - H4b - W5 - Image 3
H120 FAST - H4b - W5 - Image 4
TECHNICAL FEATURES
Barrier
H120 FAST
Lenght
5.99 m
Height
120 cm
Base
66 cm
Weight
4900 kg
Anchored barrier
NO
Anchored terminals
YES
CE Certification
YES
CRASH TEST – EN 1317
ASI
B
Containment level
H4b
Normalized working width
W5
Dynamic normalized deflection
1.0 m
Normalized vehicle intrusion
VI8
Test Length (Excluding Terminal)
72 m
