H120 FAST – H4b – W2

SINGLE LINE BARRIER FOR CENTRAL RESERVE AND SIDE EDGE.

Concrete road safety barrier 1.20 m high, H4b containment level.
Placed on asphalt and pinned by 6 anchoring “pins” with reduced insertion, easily removable and inspectable.

Download BIM model

Download

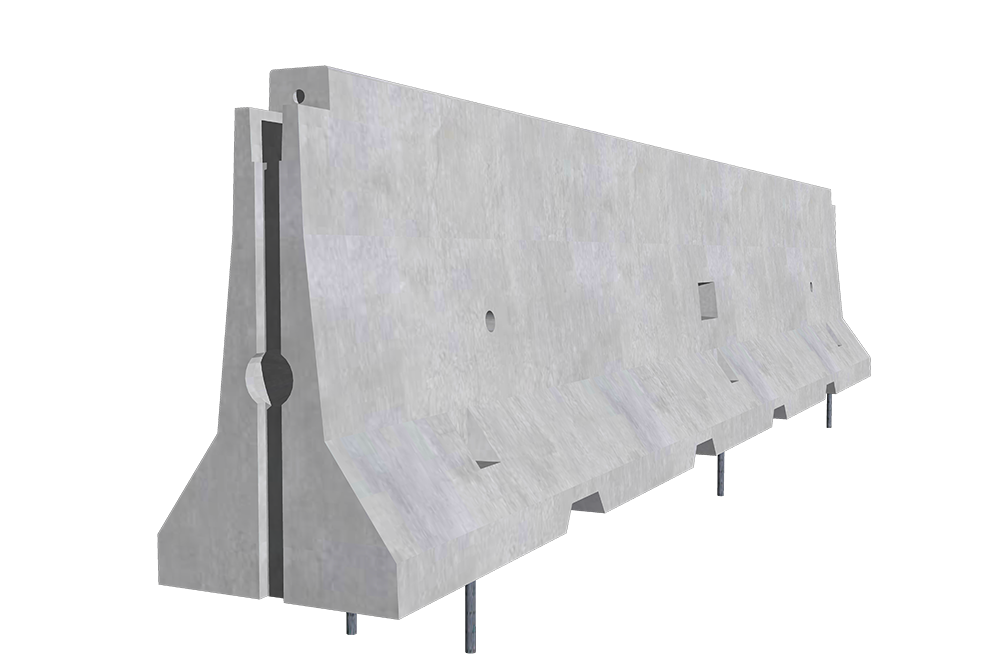

H120 FAST - H4b - W2
H120 FAST - H4b - W2 - Image 2
H120 FAST - H4b - W2 - Image 3
H120 FAST - H4b - W2 - Image 4
TECHNICAL FEATURES
Barrier
H120 FAST
Lenght
5.99 m
Height
120 cm
Base
66 cm
Weight
4900 kg
Anchored barrier
YES
Anchored terminals
YES
CE Certification
YES
CRASH TEST – EN 1317
ASI
B
Containment level
H4b
Normalized working width
W2
Dynamic normalized deflection
0.2 m
Normalized vehicle intrusion
VI7
Test Length (Excluding Terminal)
72 m
